Step 2 (Select the proper track adapter depending on your ATV model)
You may refer to the chart shown in the photos.
You may browse the website using the Search “by vehicle” search tool.

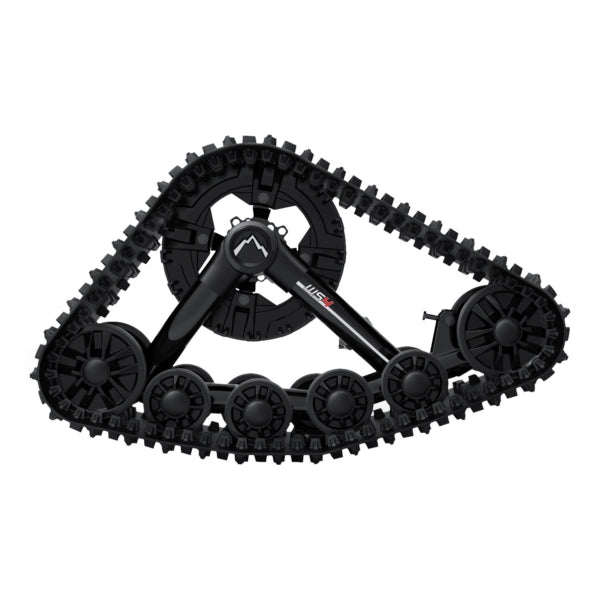

$$ $$The WS4 is the logical continuation of our “Commander” series, with reduced driving effort, decreased vibration and same traction capability as always for the best performance in all 4 seasons. Of course, the same sturdiness is maintained through a 2.5” tubular frame and an overall lightweight necessary to surf on snow.
$$ Why limit yourself when you could drive a WS4 “Commander”!
15” (381 mm) sprocket built for all season use
Aggressive track profile
$$
HD tensioner: Quick & easy to use
Pronounced attack angle helps to clear obstacles
Wheels contact patch coated with rubber: Prevents ice from sticking
$$
System without slider shoe for all season performance
$$
Three wheels on the ground for less steering effort
$$
Wheels with two cap-protected ball bearings : low and easy maintenance$$
Triangulated frame composed of robust 2.5” (64 mm) steel tubing$$
Specifications:
Width: 292 mm / 11.5” front, 330.2 mm / 13” rear
Length: 2460 mm / 97” front, 2540 mm / 100” rear
Weight: (without mount kit) 72 lb. / 32 kg front, 75 lb. / 34 kg rear
Frame material: Steel
Lug height: 25 mm / 1.00” front, 32 mm / 1.25” rear
$$
Drive type: Internal
Flotation surface: 1.32 m² / 2045 in² total = 0.61 m² / 945 in² front & 0.71 m² / 1100 in² rear
Ground clearance: Increase of 125 mm / 5”
$$
Speed loss: 35%
$$
Initial installation time: 1,5 hrs.
Subsequent installation time: 30 minutes
$$
Applications: ATV only
User :
Snow: Deep, Moderate, Path and Springtime
Off Snow: Marshland, Mud, Sand, Dirt road and Gravel
NOTES for the DPS module :
The DPS module gives you the real speed of your vehicule while driving. Here are the codes to be used depending on the vehicule you own:
Outlander G1 (Since 2012) = 715 000 969
Outlander G2 (2013 and up) = 715 001 202
Outlander L = 715 001 202
Renegade G2 (2012 and up) = 715 001 202
